Main Board w. Enclosure

Description

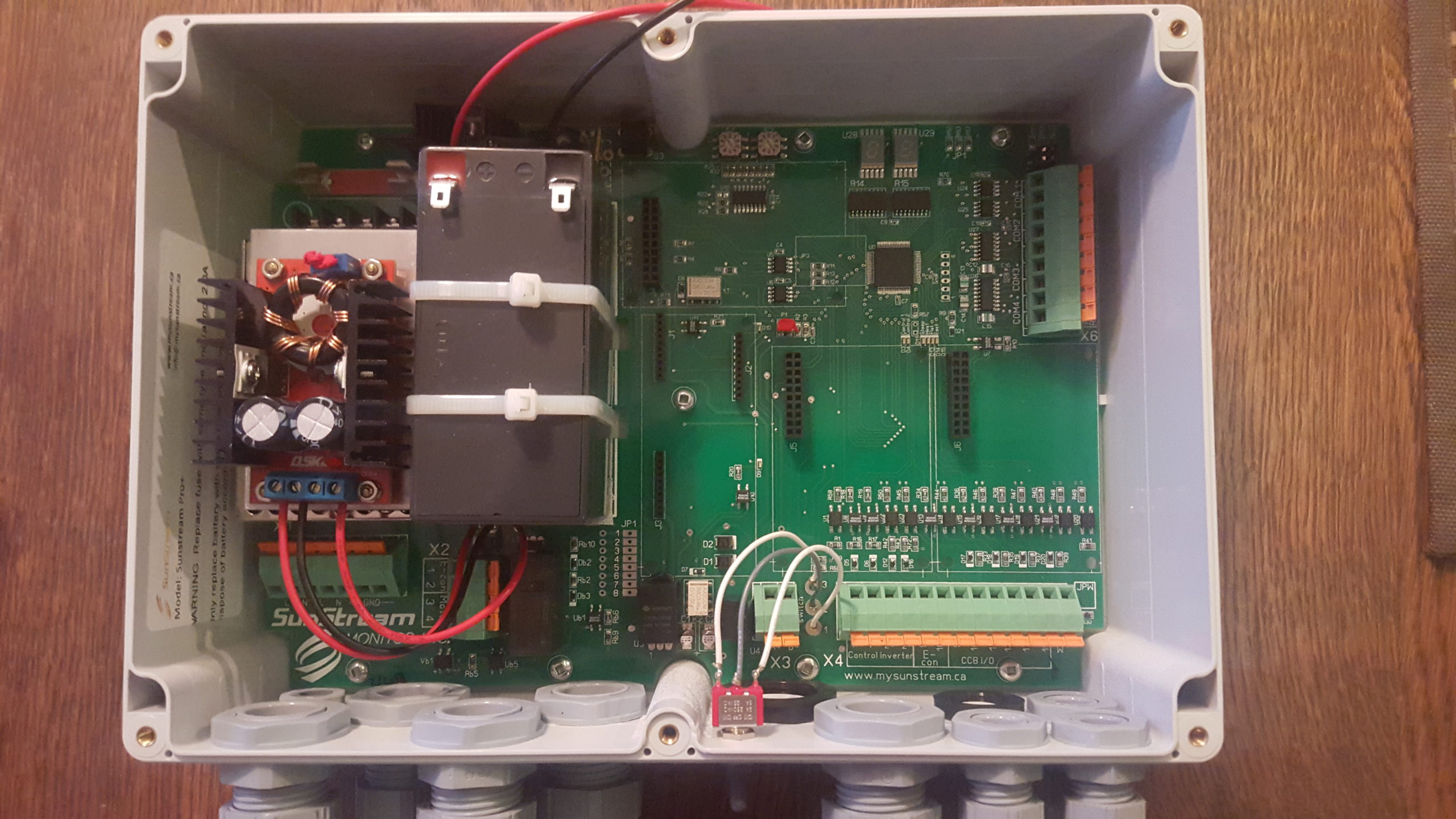

Detailed features of the main board

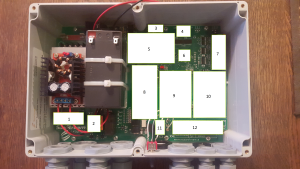

• The main board comes ready for outdoor use in a NEMA 4x rated box with 5xPG16 cable glands, 3xPG9 cable glands and a Goretex membrane.
• CSA approved
• 110VAC supply and pass through (Box 1)
• 12VDC 1.2Ah backup battery
• freely programmable Pic18F87K22 controlled: (Box 6)
  • 2x 10 digit inputs (Box 3)
  • 2x 7 seg display (Box 4)
  • 2x RS485 Com ports (Box 7)
  • 2x Rs232 Com ports (Box 7)
  • 13x opto-isolated DIO (Box 12)
  • 2x extension positions (24VDC, 5VDC, RS485 network)(Box 9/10)
  • add a Netburner SB70Lc for internet functionality (Box 5)
  • add a Multitech Universal Socket device for Wifi, Cellular, GPS, Bluetooth functionality (Box 8)
• RS485 network connecting extension ports, Netburner slot, Pic, and external for ease of integration. (Box 11)
